Model No.: JH-C03

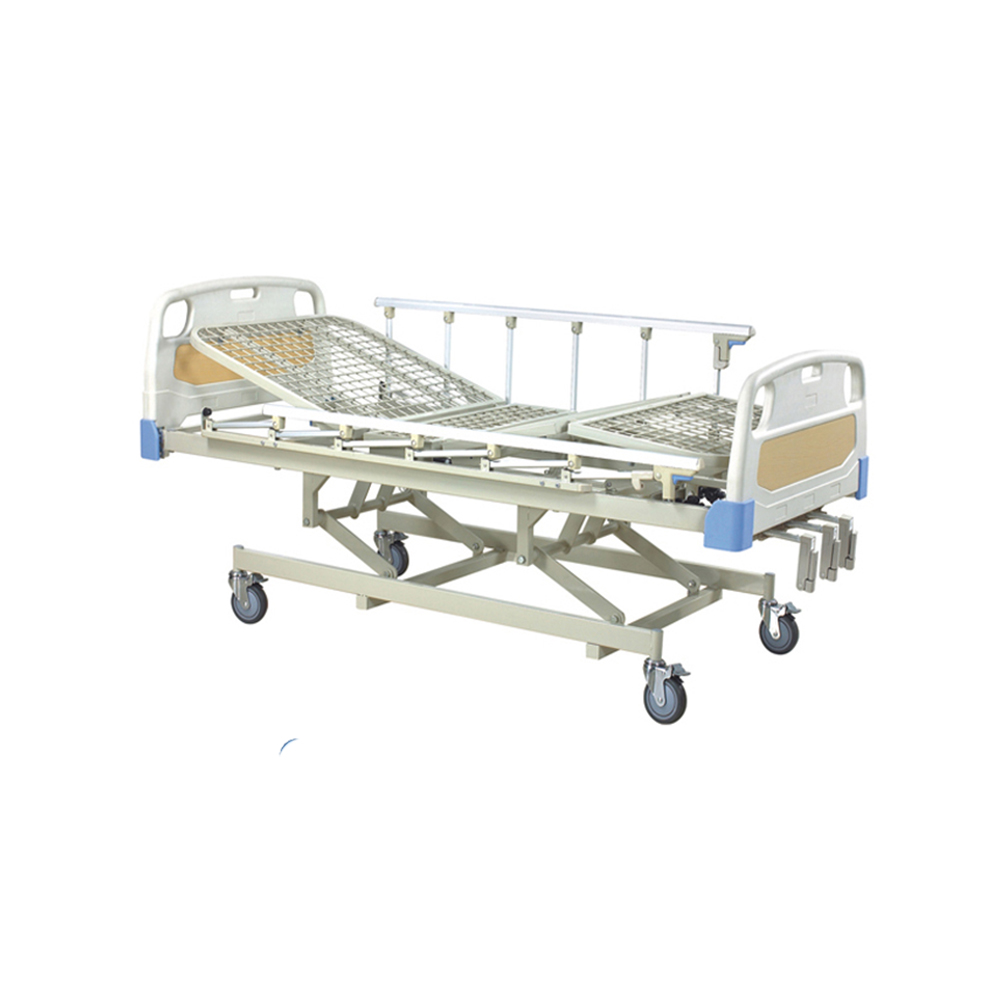

Automatic 3 Function Electric Hospital Bed
High quality, comfort, safety and ease of use at an affordable price!
We offer a comprehensive range of hospital and long-term care beds, designed to help provide the best environment for your patients and residents various needs, acuities and care settings, from critical care to home care.
The range includes manual and electric hospital beds, nursing home beds, Examination Bed, pediatric beds and stretchers, as well as related accessories that are designed to support and assist the resident/patient and the caregiver.
Our products help to reduce fall risk, improve pressure area care and promote resident/patient independence and comfort.
|Product Name|| |
2 Functions Manual Medical Bed with Stainless Cranks for Patient
| Outer dimensions (Side rails up): L2200*W970mm(±10mm) |
Bed height: H500mm(±10mm)
Maximum backrest: ≥70°
Maximum knee rest: ≥50°
Height of side rails(above mattress platform) : 350mm(±10mm)
Safe working load: 200kgs
|Electric parameters|| |
Power supply: 220V/110V, 50HZ / 60Hz
Maximum input: 1.6A,450VA
Protection against water and dust: IPX4
Equipment classification: Class II
Level of protection against injury from electrical current: Applied part type BF
Electric motor operation mode (load factor): 10%, max2min/18min
|Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1,EN60601-1-2 ,EN ISO 14971,93/42/EEC,90/384/EEC EN60601-2-52:2009|
|Standard Configuration|| Standard configuration |
1.Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls.
2.Removable Mattress Platform: Easy removable and easy for sterilization. The mattress 3.H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.
4.Protective corner bumpers
5.Lifting pole or infusion stand holes
7.Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively. 8.Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.
9.Four 125mm castors with central locking system
10.Manual CPR: The manual CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.
- High quality strictly meet international standards(CE, ISO)
- One- stop procurement, time and energy-saving.
- Founded on 2009 and now has exported 90 countries al lover the world.
- Quick response to inquiryand can achieve fast delivery speed.
